Console Box: Removal

WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.

Remove the ring indicator (A) and console front panel (B).

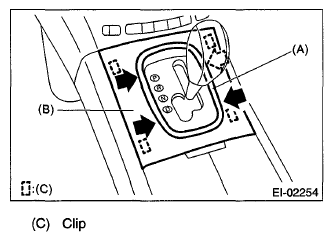

Fig 1: Identifying Ring Indicator And Console Front Panel With Clip
Courtesy of SUBARU OF AMERICA, INC.

NOTE: The ring indicator can be easily removed by inserting the clip remover or equivalent into the positions indicated by arrows.
Remove the screws.

Fig 2: Locating Console Box Screws
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts inside the upper pocket.

Fig 3: Locating Upper Pocket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Pull out the console lower pocket, and remove the console box.
