Operating condition: Notes

Radiator fan operates depending on the radiator fan operation mode related to engine coolant temperature or the radiator fan operation mode related to A/C compressor load, whichever is higher as an operation mode.

• Radiator fan operation mode related to engine coolant temperature

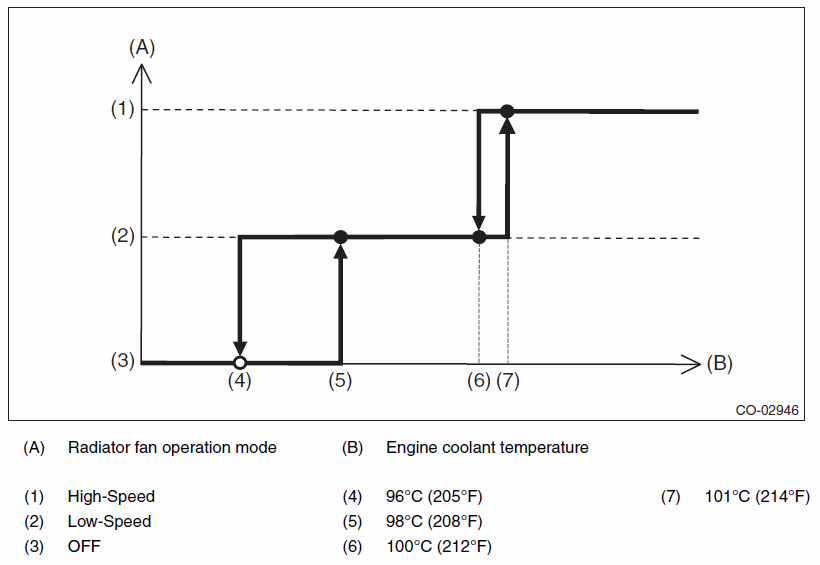

  Fig 1: Identifying Curve Between Radiator Fan Operation Mode And Engine Coolant Temperature

  Courtesy of SUBARU OF AMERICA, INC.
• Radiator fan operation mode related to A/C compressor load

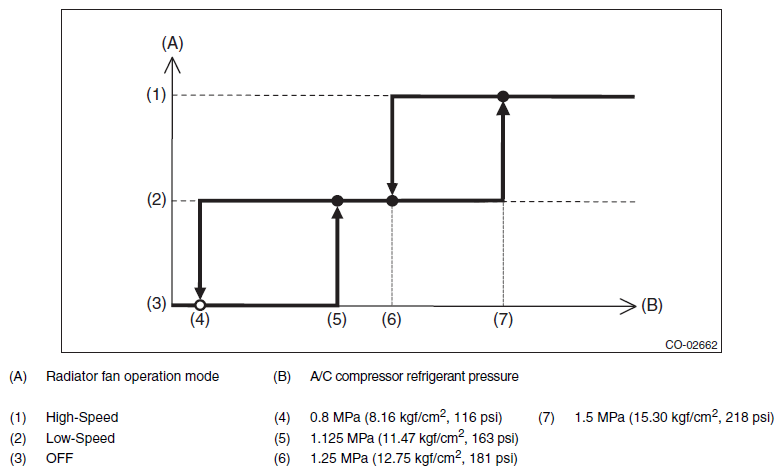

  Fig 2: Identifying Curve Between Radiator Fan Operation Mode And A/C Compressor Loads

  Courtesy of SUBARU OF AMERICA, INC.
