Except For STI Model

Disconnect the ground cable from battery.
Remove the gear shift knob.
Remove the console box. < Ref. to REMOVAL , Console Box. >
Remove the console side cover and console front panel. < Ref. to CONSOLE FRONT PANEL , REMOVAL, Center Console. >
Remove the clamp.

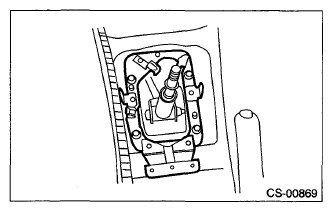

Fig 1: Console Side Cover Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the boot and insulator assembly.

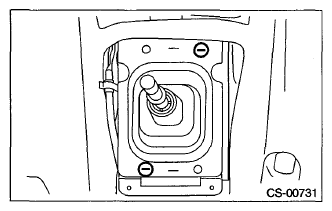

Fig 2: Boot And Insulator Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness clamp from the plate COMPL.

Fig 3: Harness Clamp Of Plate COMPL
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate COMPL from the vehicle body.

Fig 4: Plate COMPL Of Vehicle Body
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the center exhaust pipe (rear). < Ref. to GENERAL DESCRIPTION . >
Remove the heat shield cover.

Fig 5: Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the stay from transmission bracket.

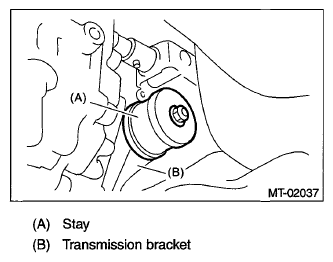

Fig 6: Stay And Transmission Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the rod from joint.

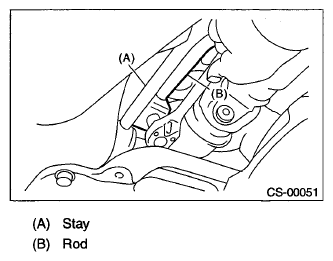

Fig 7: Stay And Rod
Courtesy of SUBARU OF AMERICA, INC.
Remove the cushion rubber from the vehicle body.

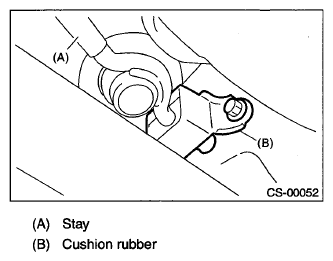

Fig 8: Stay And Cushion Rubber
Courtesy of SUBARU OF AMERICA, INC.
Extract the spring pin and remove the joint.

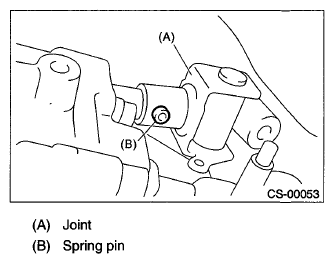

Fig 9: Spring Pin And Joint
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the gear shift lever.

Fig 10: Removing Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
