Purge Damper: Installation

Install in the reverse order of removal.

Tightening torque: 13 N.m (1.3 kgf-m, 9.6 ft-lb)

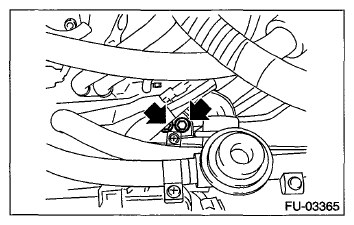

Fig 1: Locating Purge Damper Bracket Bolts

G07681849

Courtesy of SUBARU OF AMERICA, INC.
