Intake Manifold

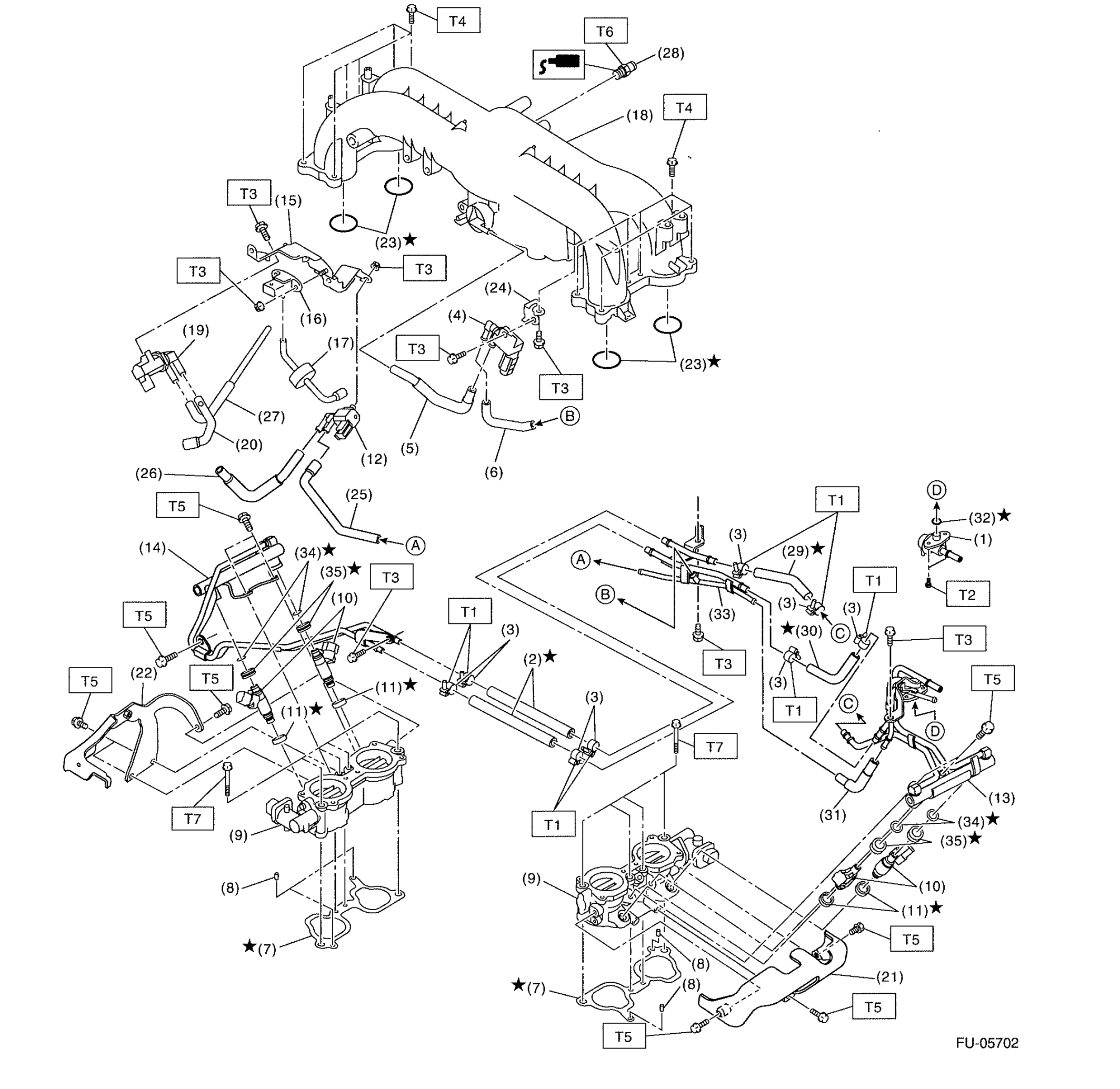

Fig 1: Exploded View Of Intake Manifold Components
G00523613Courtesy of SUBARU OF AMERICA, INC.

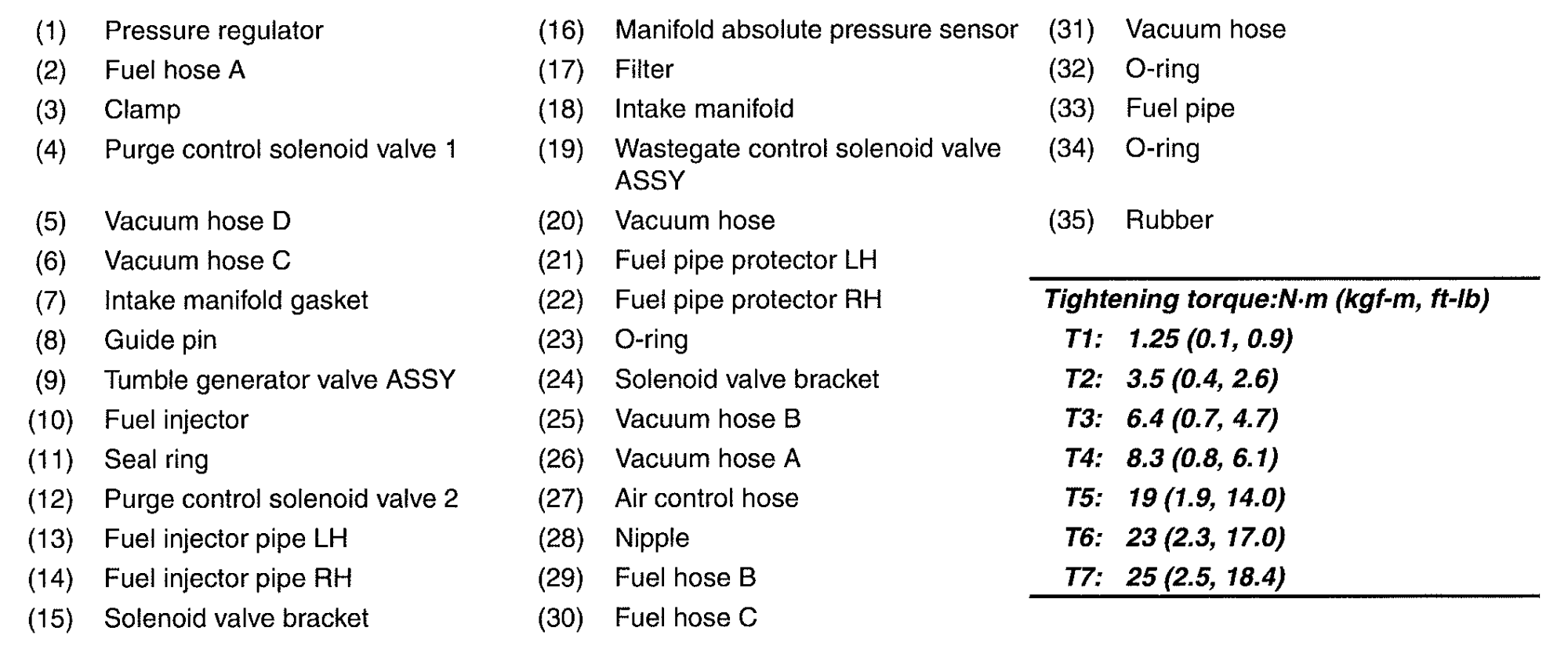

Fig 2: Intake Manifold Component Identification List With Torque Specs
G00523614Courtesy of SUBARU OF AMERICA, INC.
