Subaru
>>
2012
>>
Impreza WRX, 4D Sedan
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel Injection System (W/O STI) (WRX-STI)
>>
General Description
>>
Components With Torque Specifications
>>
Air Intake System
Air Intake System

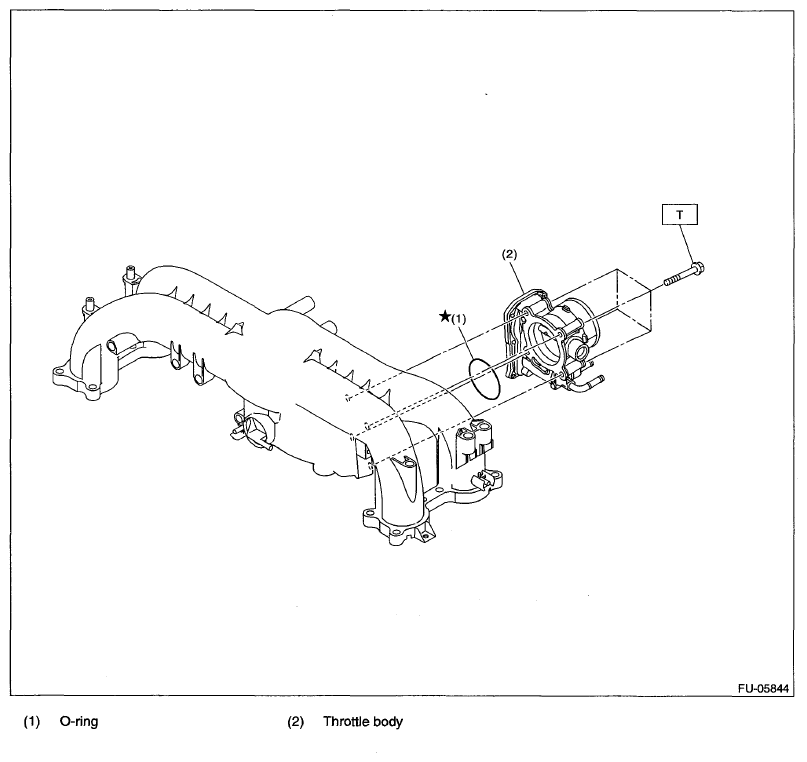

Fig 1: Identifying Air Intake System O-Ring And Throttle Body Components
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 8 (0.8, 5.9)
Courtesy of SUBARU OF AMERICA, INC.
