RH Side

Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
Disconnect the ground cable from battery.

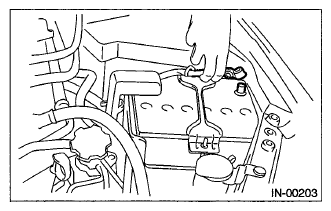

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Open the fuel filler lid and remove the fuel filler cap.
Remove the intake manifold. < Ref. to REMOVAL , Intake Manifold. >
Remove the fuel pipe protector RH from the intake manifold.

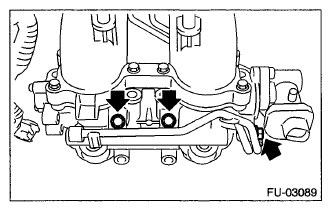

Fig 2: Locating Fuel Pipe Protector RH Mounting Bolts Of Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from fuel injector.

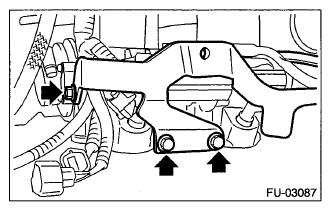

Fig 3: Identifying Fuel Injector Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which holds fuel injector pipe RH onto intake manifold.

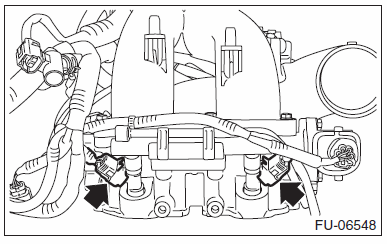

Fig 4: Locating Fuel Injector Pipe RH Mounting Bolts Of Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector.

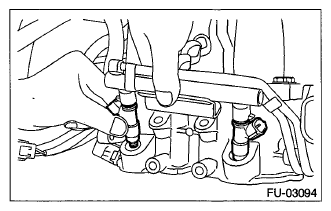

Fig 5: Removing Fuel Injector
Courtesy of SUBARU OF AMERICA, INC.
