VDC Mode Change Switch: Removal

NOTE: VDC mode change switch is equipped with STI model only, and it is also used as VDC OFF switch.
  1. Remove the instrument panel lower cover. < Ref. to REMOVAL , Instrument Panel Lower Cover. >
  2. Remove the screws, and then remove the VDC mode change switch.

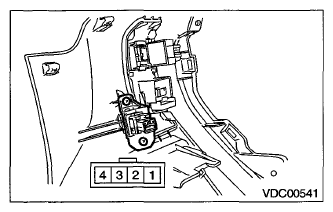

    Fig 1: Identifying VDC Mode Change Switch Connector Terminals
    G07689973Courtesy of SUBARU OF AMERICA, INC.
