STI Model

Disconnect the ground cable from battery.
Remove the gear shift knob.
Remove the console box. < Ref. to REMOVAL , Console Box. >
Remove the console side cover and console front panel. < Ref. to CONSOLE FRONT PANEL , REMOVAL, Center Console. >
Remove the clamp.

Fig 1: Console Side Cover Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the boot and insulator assembly.

Fig 2: Boot And Insulator Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness clamp from the plate COMPL.

Fig 3: Harness Clamp Of Plate COMPL
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate COMPL from the body.

Fig 4: Plate COMPL Of Body
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the under cover.
Remove the center exhaust pipe. < Ref. to REMOVAL , Center Exhaust Pipe. >
Remove the heat shield cover.

Fig 5: Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the crossmember. < Ref. to REMOVAL , Transmission Mounting System. >
Remove the snap pin and washer, and remove the reverse check cable from the reverse check lever.

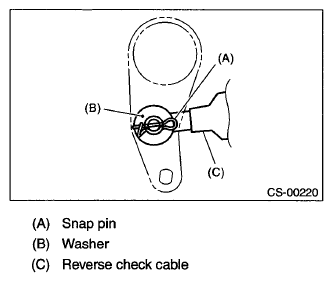

Fig 6: Snap Pin, Washer And Reverse Check Cable
Courtesy of SUBARU OF AMERICA, INC.
Move the transmission to the right side, and remove the joint COMPL, stay bolts and reverse check cable.
NOTE: If the transmission is not moved aside, the joint COM PL and stay bolts may contact the body and cause damage.

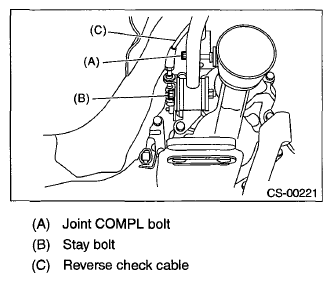

Fig 7: Joint COMPL Bolt, Stay Bolt And Reverse Check Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the cushion rubber from the body.

Fig 8: Cushion Rubber Of Body
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the gear shift lever.
