Accelerator Pedal: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G07681433Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector (A).
  3. Remove the nut (B) securing accelerator pedal assembly, and remove the accelerator pedal assembly.

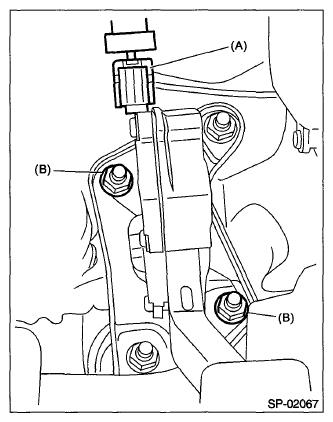

    Fig 2: Connector And Nut Securing Accelerator Pedal Assembly
    G07681434Courtesy of SUBARU OF AMERICA, INC.
