Throttle Body: Removal

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the under cover. < Refer to REMOVAL , Front Under Cover. >
Drain approximately 3.0 fi (3.2 US qt, 2.6 Imp qt) of coolant. < Refer to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
Remove the intercooler. < Refer to REMOVAL , Intercooler. >

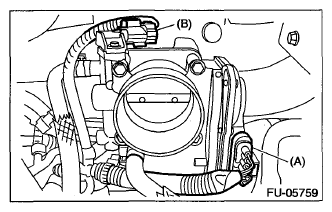

Disconnect the connector (A) from the throttle position sensor, and the connector (B) from the manifold pressure sensor.

Fig 2: Identifying Throttle Position Sensor Connector And Manifold Pressure Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.

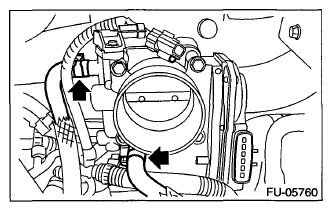

Disconnect the engine coolant hose from throttle body.

Fig 3: Locating Engine Coolant Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the throttle body from the intake manifold.

Fig 4: Locating Intake Manifold Bolts
Courtesy of SUBARU OF AMERICA, INC.
