Pressure Regulator & Damper Assembly: Disassembly

  1. Remove the fuel pipe protector from the pressure regulator and damper assembly.
    Fig 1: Identifying Fuel Pipe Protector And Pressure Regulator And Damper Assembly
    G00523610Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the pulsation damper and fuel pipe gasket from the fuel holder assembly, and remove the pressure regulator from the fuel holder assembly.

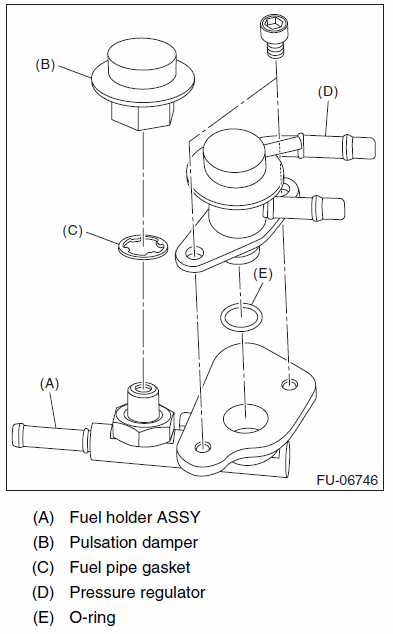

    Fig 2: Identifying Fuel Holder Assembly Components
    G00523611Courtesy of SUBARU OF AMERICA, INC.
