Pressure Regulator & Damper Assembly: Assembly

Install the pressure regulator to the fuel holder assembly, and install the fuel pipe gasket and pulsation damper to the fuel holder assembly.
NOTE:
- Use new O-rings and fuel pipe gaskets.
- Apply a thin coat of engine oil to the pressure regulator installation hole of fuel holder assembly.

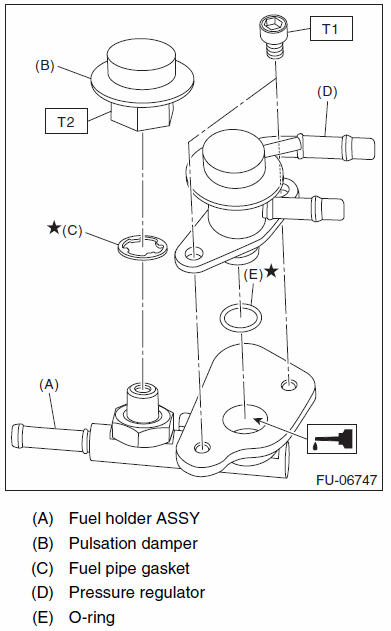

Fig 1: Identifying Fuel Holder Assembly Components
Courtesy of SUBARU OF AMERICA, INC.
Install the fuel pipe protector to the pressure regulator and damper assembly.

Fig 2: Identifying Fuel Pipe Protector And Pressure Regulator And Damper Assembly
Courtesy of SUBARU OF AMERICA, INC.
