VDC Control Module and Hydraulic Control Unit (VDCCM&H/U): Inspection: Notes

  1. Check the condition of connection and settlement of connector.
  2. Check the mark used for VDCCM&H/U identification.

    Refer to "SPECIFICATION" for identification mark. < Ref. to SPECIFICATION , General Description. >

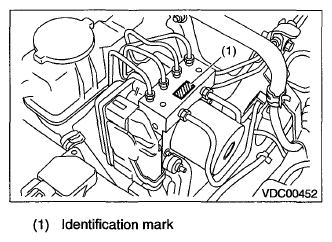

    Fig 1: Identifying VDCCM & H/U Identification Mark
    G07689944Courtesy of SUBARU OF AMERICA, INC.
