MT Gear Shift Lever: Disassembly

Remove the lock wires.

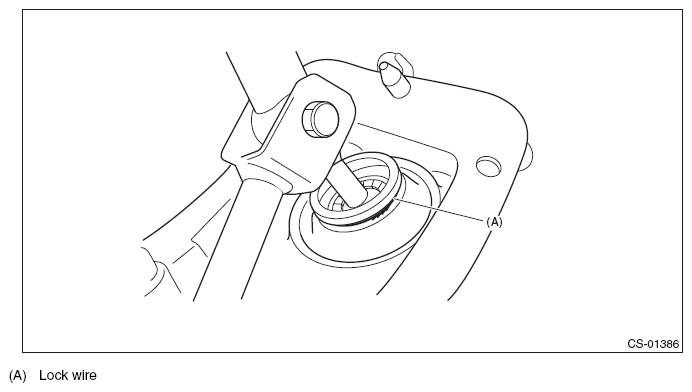

Fig 1: Identifying Gear Shift Lever Lock Wire
Courtesy of SUBARU OF AMERICA, INC.
Remove the rod from lever.

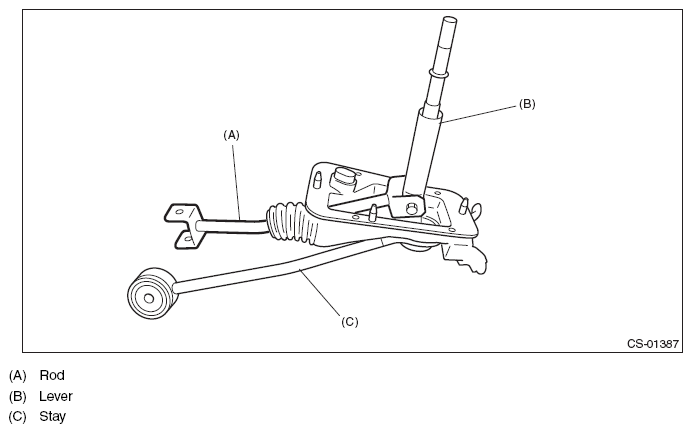

Fig 2: Identifying Rod, Lever And Stay
Courtesy of SUBARU OF AMERICA, INC.
Separate the rod and inner boot.
Remove the snap ring from the stay.

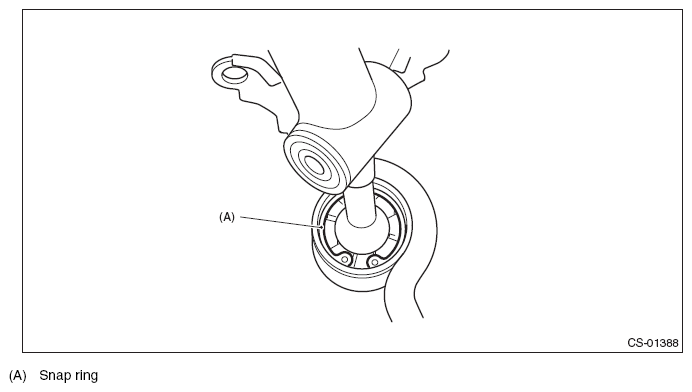

Fig 3: Identifying Gear Shift Lever Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Separate the gear shift lever and the stay.

Fig 4: Identifying Installing Position Of Gear Shift Lever And Stay
Courtesy of SUBARU OF AMERICA, INC.
Remove the boot and bushing from the gear shift lever.

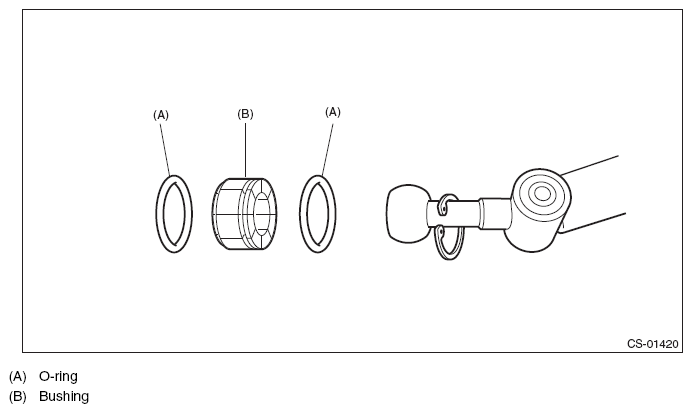

Fig 5: Identifying Gear Shift Lever O-Ring And Bushing
Courtesy of SUBARU OF AMERICA, INC.
Remove the spring pin, and then remove the bushing and snap ring.

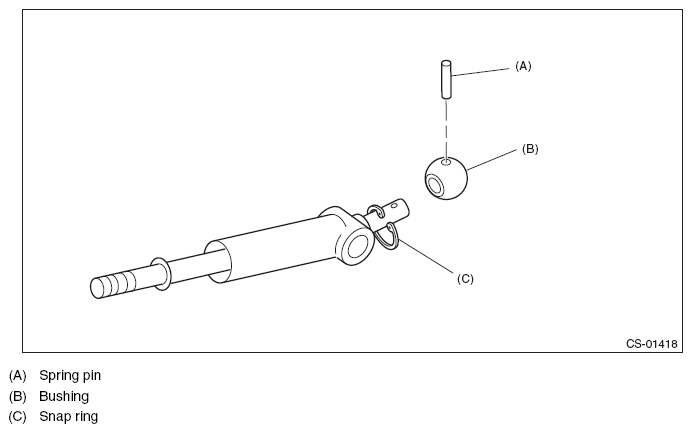

Fig 6: Identifying Spring Pin, Bushing And Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the boss from the joint.

Fig 7: Identifying Boss
Courtesy of SUBARU OF AMERICA, INC.
Remove the bushing and spacer from the boss.

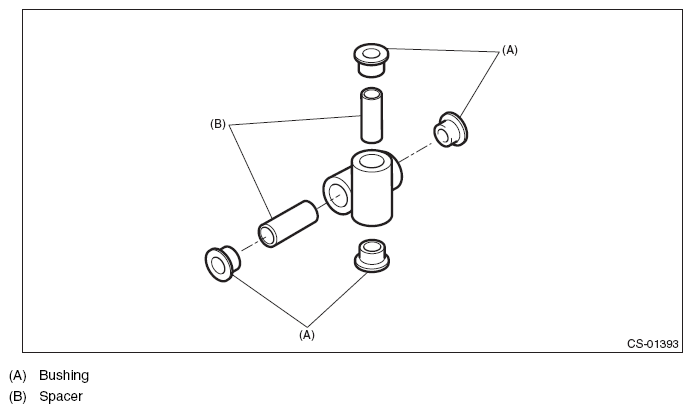

Fig 8: Identifying Gear Shift Lever Bushing And Spacer
Courtesy of SUBARU OF AMERICA, INC.
Remove the bushing and cushion rubber from the stay.

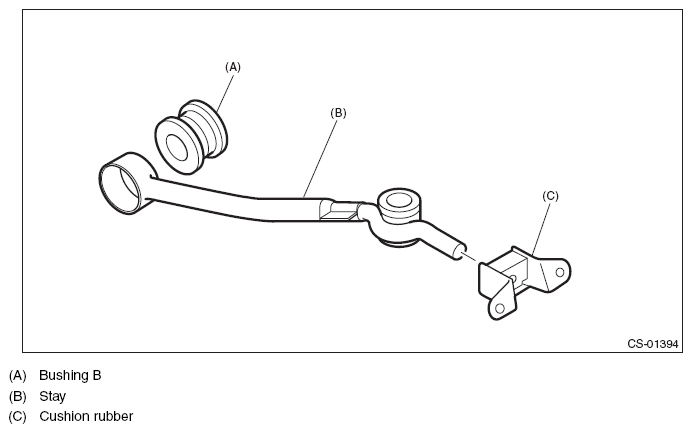

Fig 9: Identifying Gear Shift Lever Bushing B, Stay And Cushion Rubber
Courtesy of SUBARU OF AMERICA, INC.
