Control Module I/O Signal: Wiring Diagram

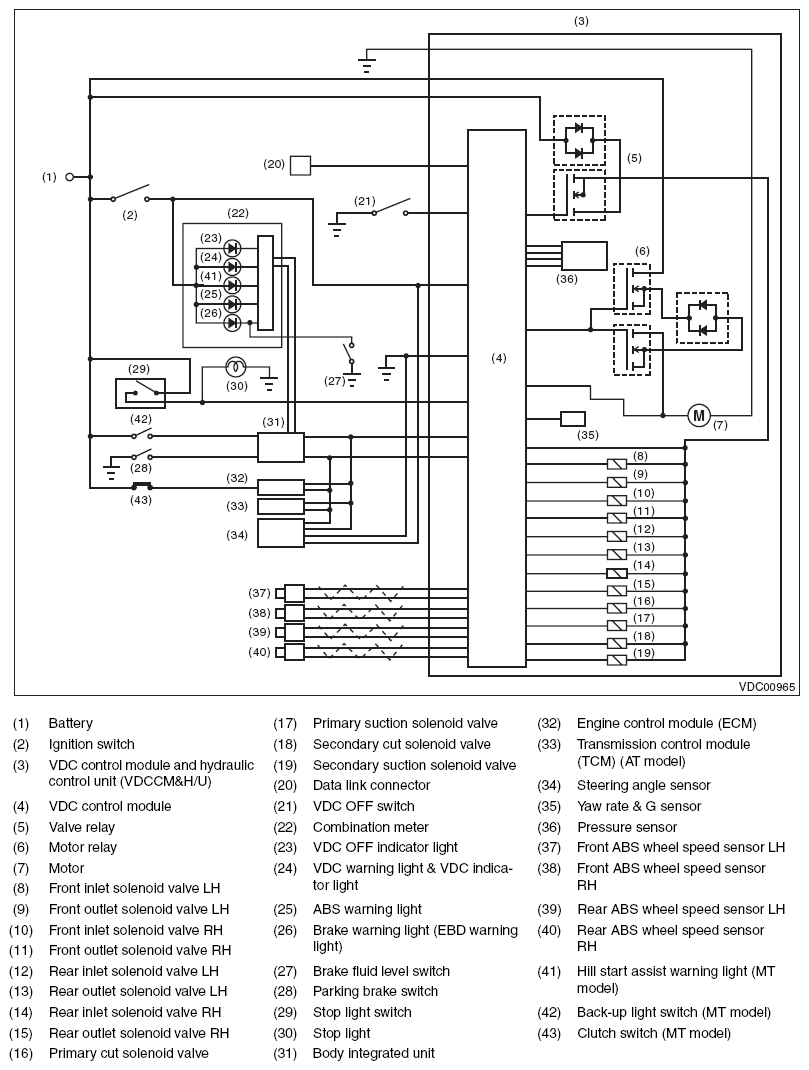

Fig 1: Electrical Control Module I/O Signal Wiring Diagram

G08314772

Courtesy of SUBARU OF AMERICA, INC.
