Select Lever: Removal

Shift the select lever to "N" range.
Disconnect the ground cable from battery.
Lift up the vehicle.
Remove the rear exhaust pipe. Refer to REMOVAL , Rear Exhaust Pipe.
Remove the center exhaust cover.

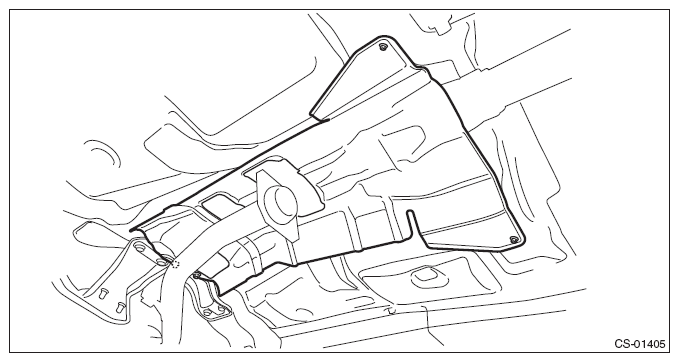

Fig 1: Identifying Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the cable from the arm COMPL.

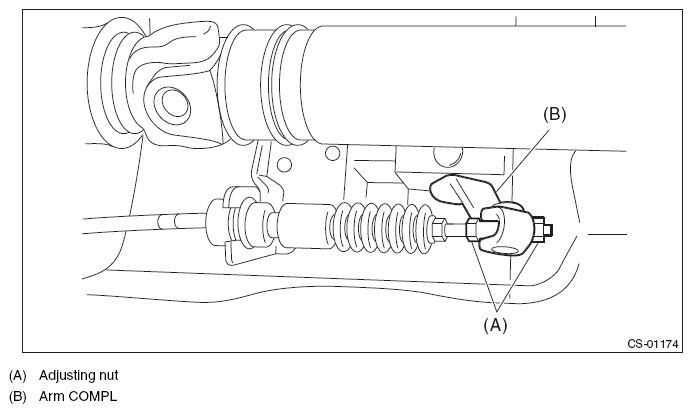

Fig 2: Identifying Adjusting Nut And Arm COMPL
Courtesy of SUBARU OF AMERICA, INC.
Raise the claw of clamp and remove the cable.

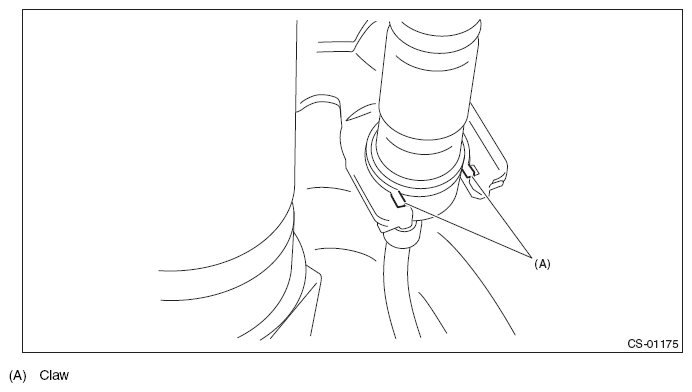

Fig 3: Identifying Clamp Claw
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Shift the select lever to "N" range.
Lower the cover grip AT vertically toward the lever.

Fig 4: Lowering Cover Grip AT Vertically Toward Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp grip pin.

Fig 5: Removing Clamp Grip Pin
Courtesy of SUBARU OF AMERICA, INC.
Remove the grip assembly.

Fig 6: Removing Grip Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the console box. Refer to REMOVAL , Console Box.
Remove the cover - shift lever.

Fig 7: Identifying Shift Lever Cover Fasteners
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector, and remove the indicator cover from the housing.

Fig 8: Identifying Indicator Housing Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the housing with the blind A and blind B.

Fig 9: Removing Housing With Blind A And Blind B
Courtesy of SUBARU OF AMERICA, INC.
Remove the blind B.

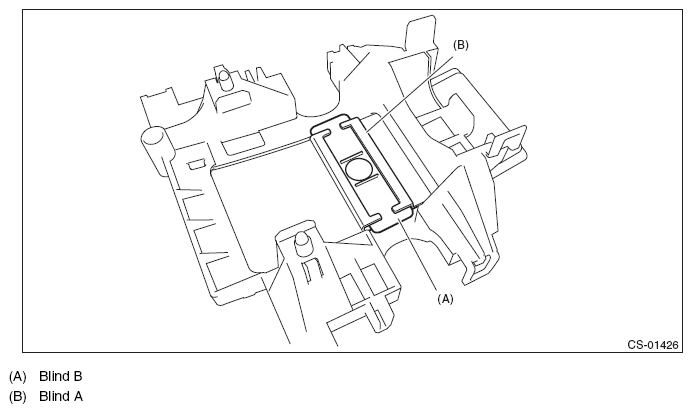

Fig 10: Identifying Blind A And Blind B
Courtesy of SUBARU OF AMERICA, INC.
Remove the blind A from the housing.

Fig 11: Identifying Housing Blind A
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness clip from the select lever.

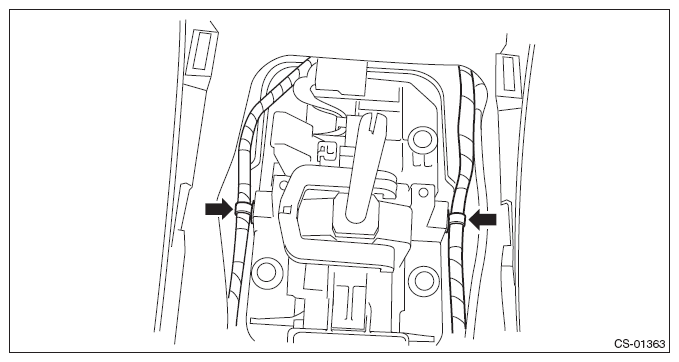

Fig 12: Locating Select Lever Harness Clip
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the harness connector.

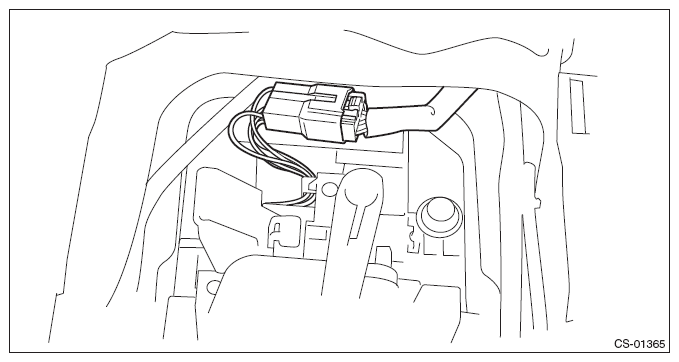

Fig 13: Identifying Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the four bolts to remove the select lever assembly.

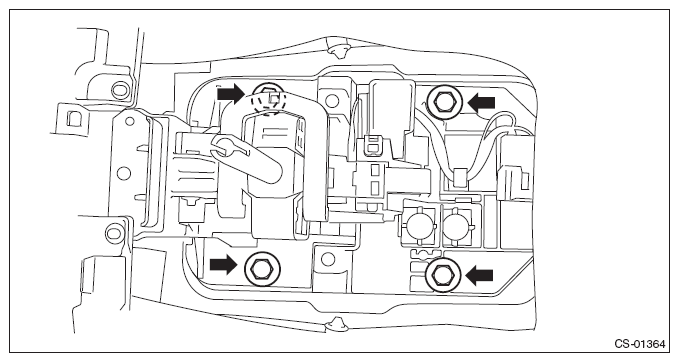

Fig 14: Locating Select Lever Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
