VDC OFF Switch: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the instrument panel lower cover. < Ref. to REMOVAL , Instrument Panel Lower Cover. >
  2. Remove the screws, and then remove the VDC OFF switch.

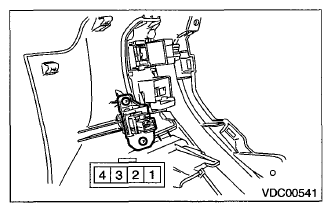

    Fig 1: Identifying VDC OFF Switch Connector Terminals
    G07689974Courtesy of SUBARU OF AMERICA, INC.
