Yaw Rate & G Sensor

WARNING: This page is about a different variant/trim than selected.

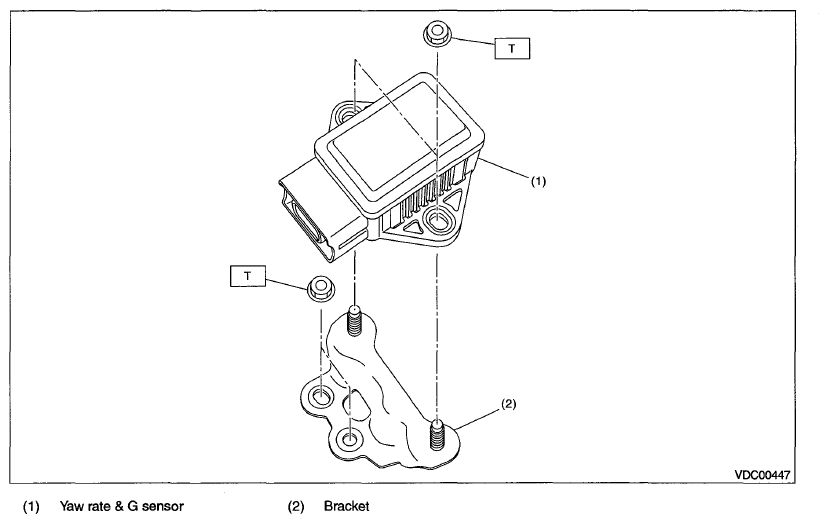

Fig 1: Identifying Yaw Rate & G Sensor Components
G07689936Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.76, 5.5)
