Crankshaft Position Sensor (Method With Oscilloscope)

  1. Prepare an oscilloscope.
  2. Remove the back panel - pocket. Refer to REMOVAL , Glove Box.
  3. Connect the probe to ECM connector.
    Fig 1: Identifying ECM Connector Terminals
    G08315329Courtesy of SUBARU OF AMERICA, INC.

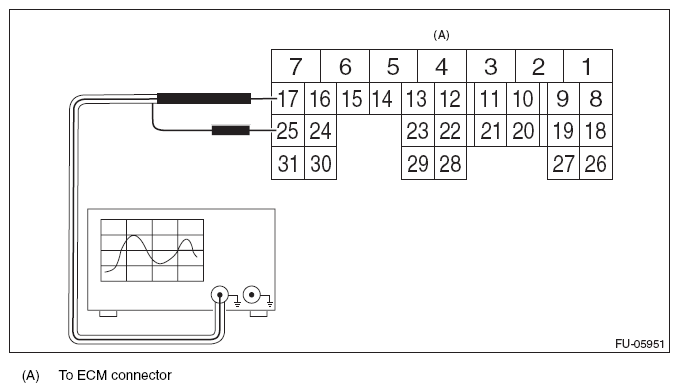

    Fig 2: Connecting Probe To ECM Connector
    G08315387Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Probe
    17 +
    25 -
  4. Start the engine and let it idle.
  5. Check the pattern is the same as the waveform and voltage shown below.

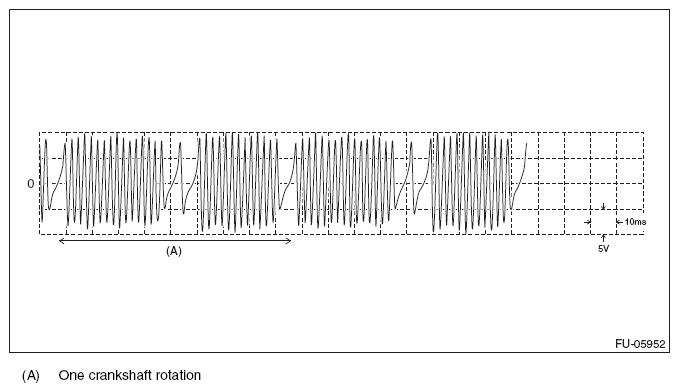

    Fig 3: Crankshaft Position Sensor Voltage Waveform (One Crankshaft Rotation)
    G08315388Courtesy of SUBARU OF AMERICA, INC.
  6. After inspection, install the related parts in the reverse order of removal.
