Oil Pump

To reduce pumping loss, a compact internal tooth gear pump is adopted. Sufficient flow rate is secured by using a oil pump drive shaft as a separate shaft that rotates at a higher rotation speed than the engine shaft by means of a sprocket and chain mechanism.

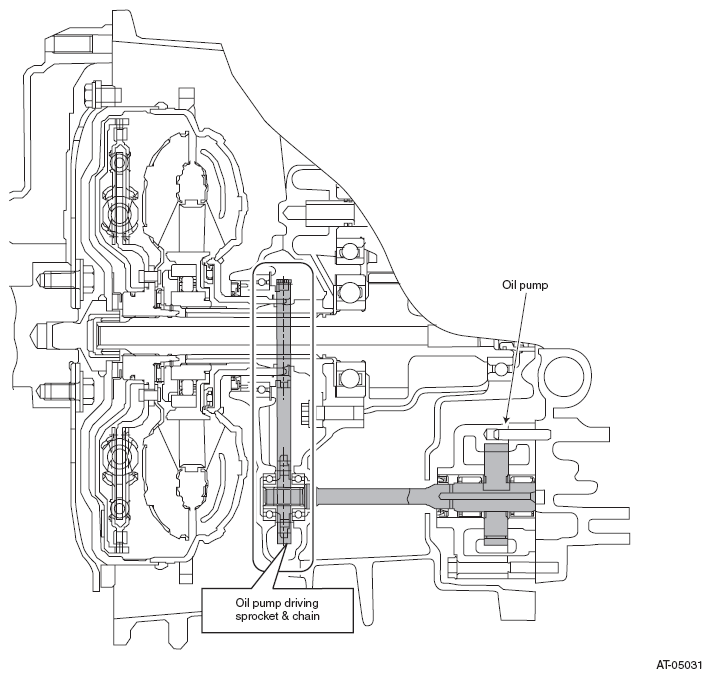

Fig 1: Identifying Oil Pump With Driving Sprocket And Chain

Courtesy of SUBARU OF AMERICA, INC.
