Forward/Reverse Changeover Mechanism: Notes

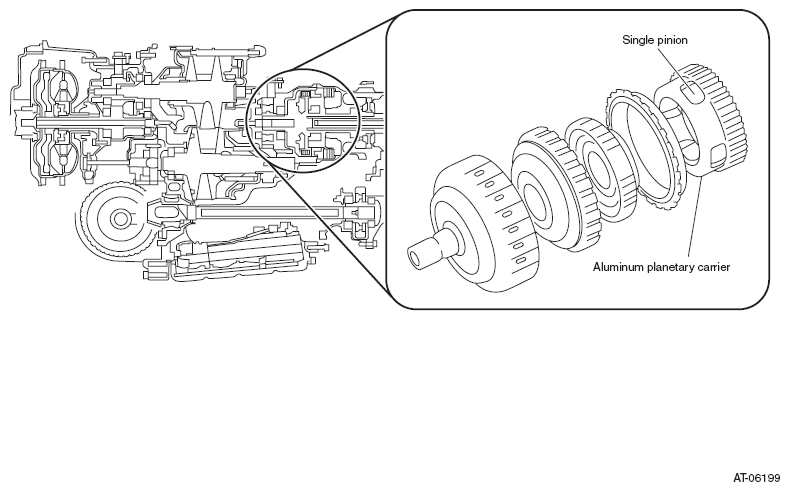

The mechanism is located between the pulley and the AWD system.
The structure is composed of an forward clutch, a reverse brake, single pinion planetary gears, and an aluminum planetary carrier.
Courtesy of SUBARU OF AMERICA, INC.
