Electronic Hydraulic Control System Diagram

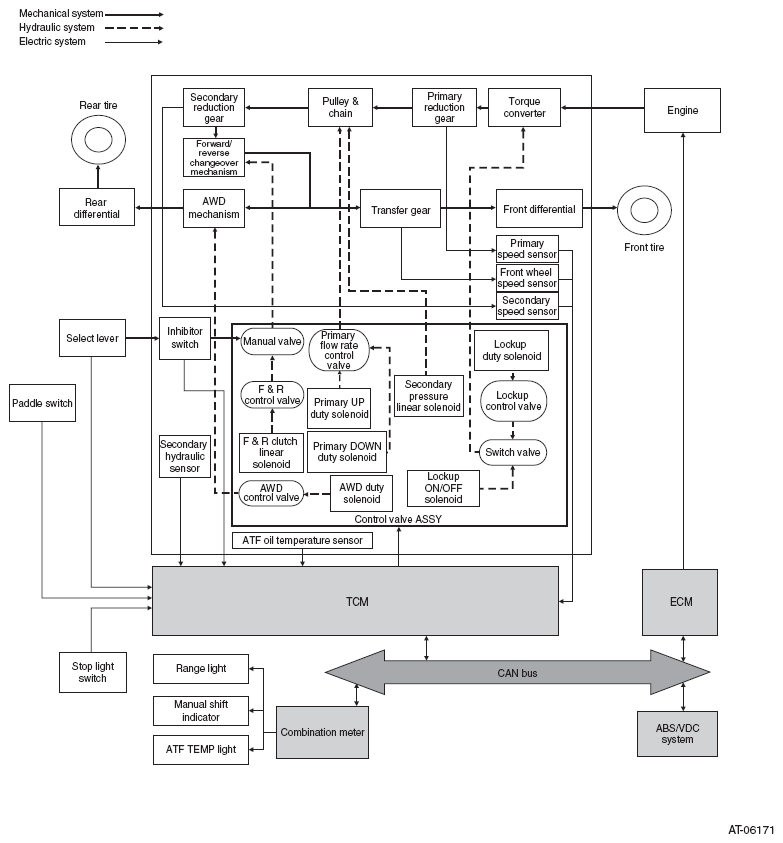

Fig 1: Electronic Hydraulic Control - System Diagram

G08260321

Courtesy of SUBARU OF AMERICA, INC.
