Home >> Subaru >> 2012 >> Forester XT Touring >> Repair and Diagnosis >> Electrical >> Horns >> Horn System >> Horn >> Removal

Horn System: Horn: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the front bumper face. < Ref. to FRONT BUMPER FACE , REMOVAL, Front Bumper. >
  3. Disconnect the harness connector.
  4. Remove the horn bracket mounting bolt to remove the horn assembly.

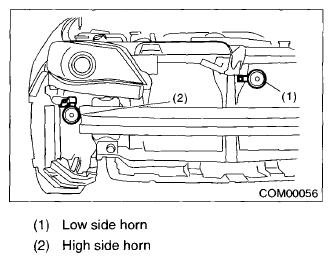

    Fig 1: Identifying Low Side Horn And High Side Horn
    G07681390Courtesy of SUBARU OF AMERICA, INC.
