Front Hood Lock Assembly: Removal

  1. Open the front hood.
  2. Remove the front bumper face. < Ref. to FRONT BUMPER FACE , REMOVAL, Front Bumper . >
  3. Remove the bolts, and then detach the front hood lock assembly.
  4. Remove the release cable from the lock assembly.

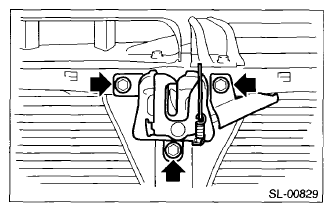

    Fig 1: Locating Front Hood Lock Assembly Bolts
    G07666527Courtesy of SUBARU OF AMERICA, INC.
