Front Hood Lock Assembly: Adjustment

  1. Loosen the bolt, and adjust the lock assembly while moving it up and down.

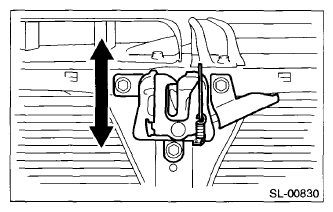

    Fig 1: Adjusting Lock Assembly While Moving It Up And Down
    G07666528Courtesy of SUBARU OF AMERICA, INC.
  2. After adjustment, tighten the bolts securely.
