Oil Charge Pipe: Removal

  1. Remove the air intake boot assembly, (non-turbo model) < Ref. to REMOVAL , Air Intake Boot. >
  2. Remove the intercooler. (turbo model) < Ref. to REMOVAL , Intercooler. >
  3. Remove the starter.
  4. Remove the oil charge pipe, and then remove the O-ring from the flange side.

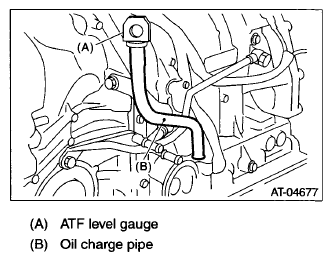

    Fig 1: ATF Level Gauge And Oil Charge Pipe
    G07665571Courtesy of SUBARU OF AMERICA, INC.
