Oil Pressure Switch: Removal

CAUTION: If the engine oil is spilt over exhaust pipe or the under cover, wipe it off with cloth to avoid emitting smoke or causing a fire.

Disconnect the ground cable from battery.

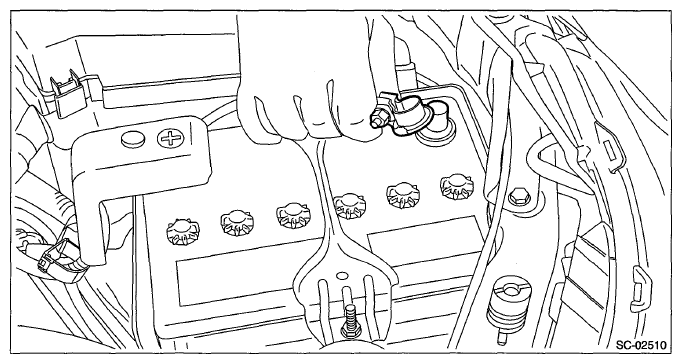

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the rubber cap.

Fig 2: Locating Rubber Cap
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the terminal from oil pressure switch.

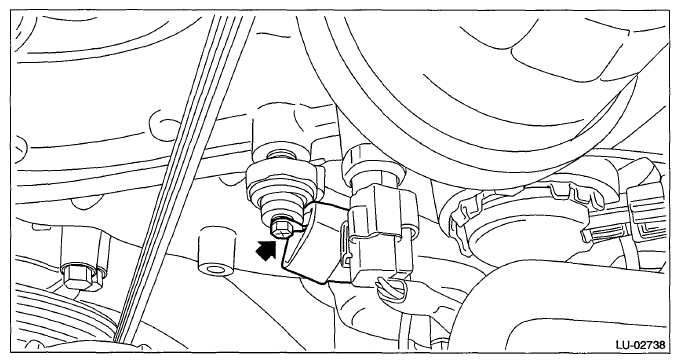

Fig 3: Locating Oil Pressure Switch Terminal Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil pressure switch.
CAUTION: Catch the engine oil using cloth to prevent it from splashing.

Fig 4: Locating Oil Pressure Switch Bolt
Courtesy of SUBARU OF AMERICA, INC.
