Parking Pawl: Installation

  1. Install the parking pawl, return spring and shaft.

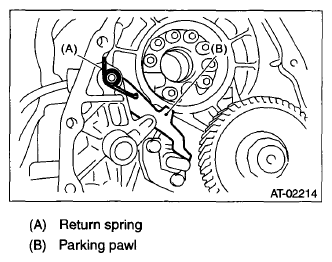

    Fig 1: Parking Pawl And Return Spring
    G07665623Courtesy of SUBARU OF AMERICA, INC.
  2. Install the reduction drive gear. < Ref. to INSTALLATION , Reduction Drive Gear. >
  3. Install the extension case. < Ref. to INSTALLATION , Extension Case. >
  4. Install the transmission assembly to the vehicle. < Ref. to INSTALLATION , Automatic Transmission Assembly. >
