Home >> Subaru >> 2012 >> Forester X, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls (Diagnostics) (H4DO) >> Drive Cycle >> Procedure >> Drive Cycle C >> Diagnostic procedure

Diagnostic procedure

Drive according to the drive pattern described below.

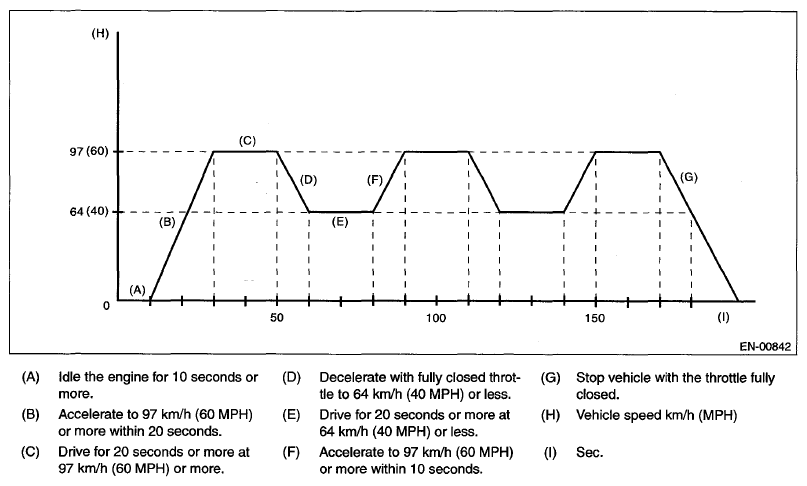

Fig 1: Drive Pattern Chart

G07670221

Courtesy of SUBARU OF AMERICA, INC.
