Engine Lubrication System (H4DOTC)
>>
General Description
>>
Components With Torque Specifications
>>
Oil Pipe
Oil Pipe

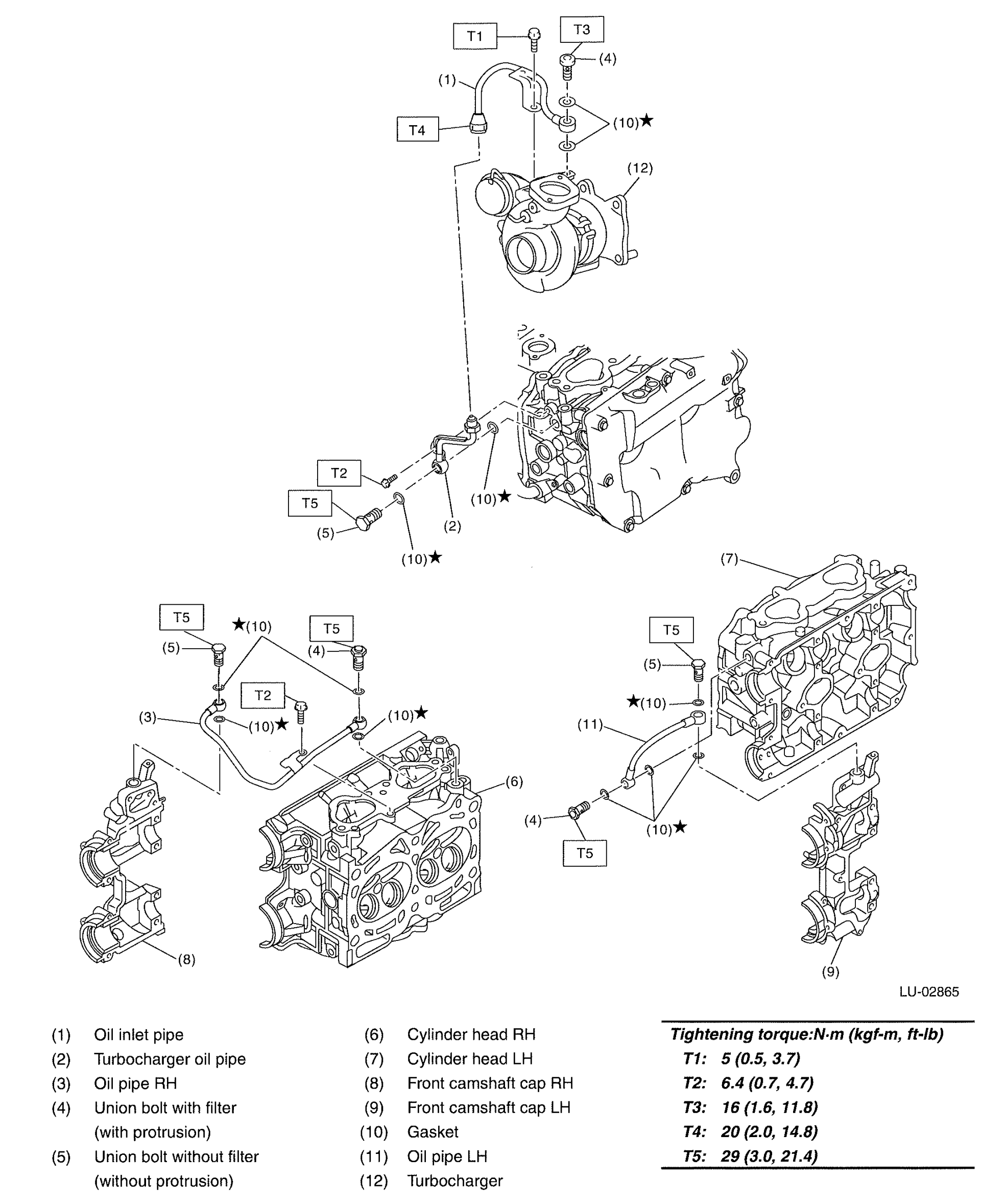

Fig 1: Exploded View Of Oil Pipe Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
