Starting System & Charging System (H4DO): Starter: Installation

Install in the reverse order of removal.

Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

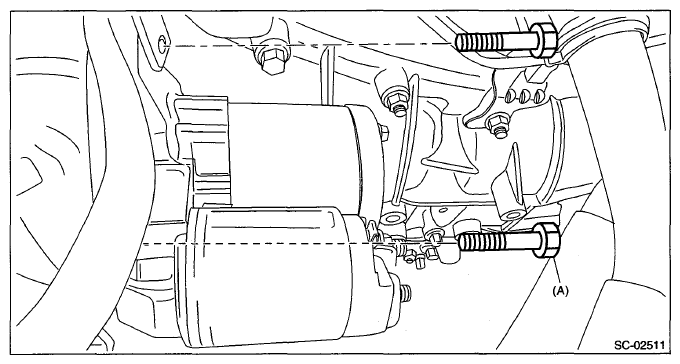

Fig 1: Identifying Starter Nuts

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

10 N.m(1.0 kgf-m, 7.4 ft-lb)

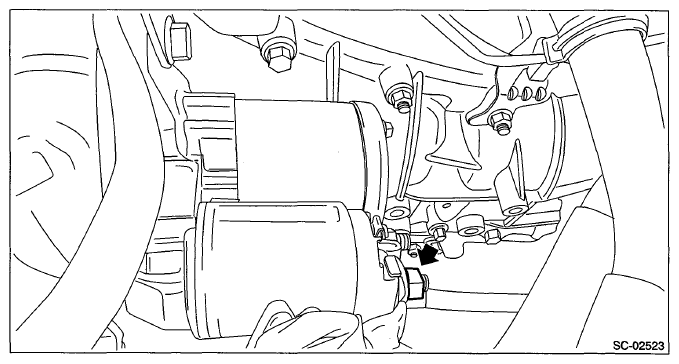

Fig 2: Locating Starter Bolt

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

3 N.m (0.3 kgf-m, 2.2 ft-lb)

Fig 3: Identifying Air Intake Boot Clamps

Courtesy of SUBARU OF AMERICA, INC.
