Front Seat LH

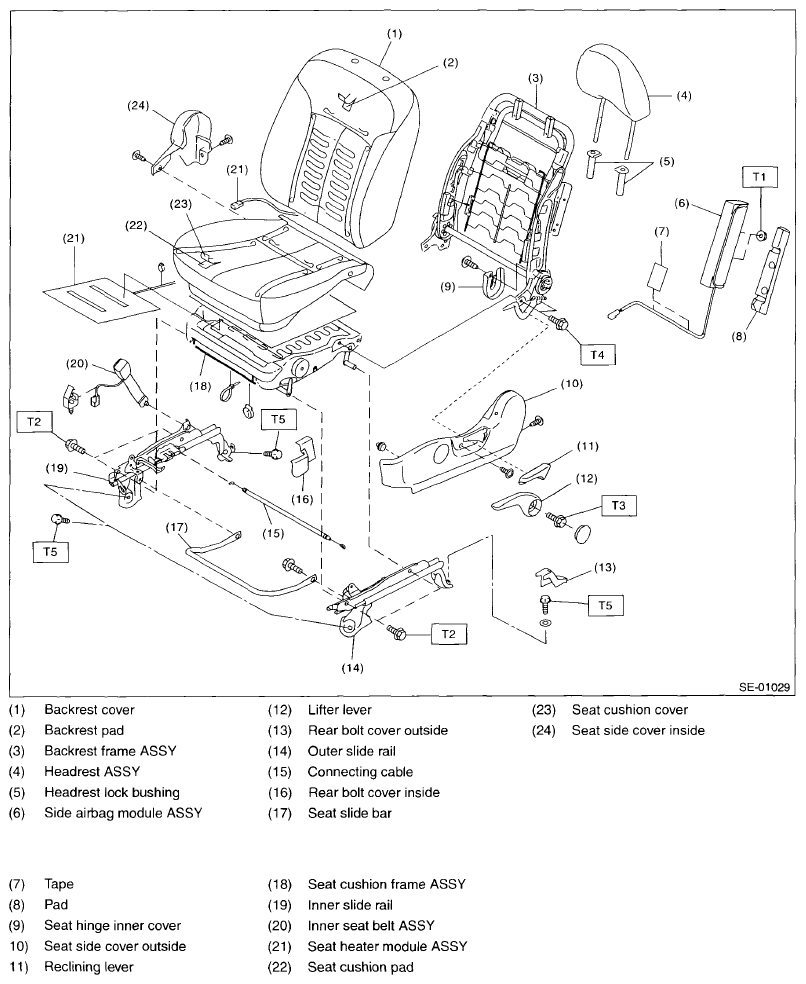

Fig 1: Exploded View Of Front Seat LH - Normal Seat

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.0 (0.61, 4.43)

T2: With lifter:

9.8 (0.99, 7.23)

Without lifter:

17.6 (1.79, 13.0)

T3: 17.6 (1.79, 13.0)

T4: 52 (5.30, 38.4)

T5: 53 (5.40, 39.1)

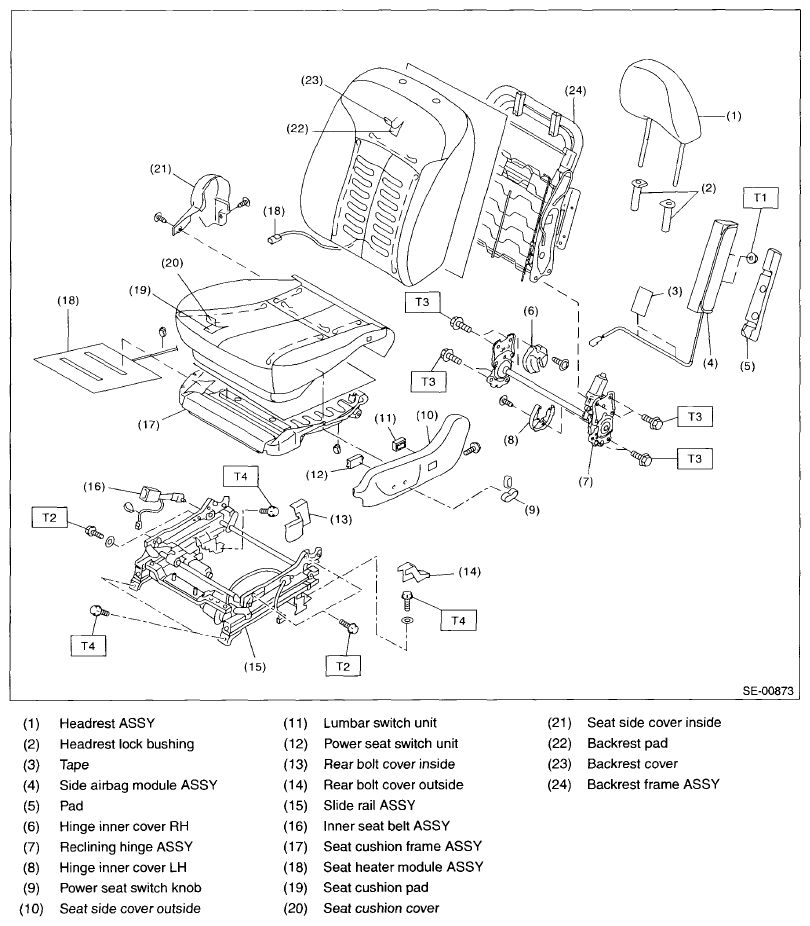

Fig 2: Exploded View Of Front Seat LH - Power Seat

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.0 (0.61, 4.43)

T2: 17.6 (1.79, 13.0)

T3: 52 (5.30, 38.4)

T4: 53 (5.40, 39.1)
