Transfer Driven Gear: Installation

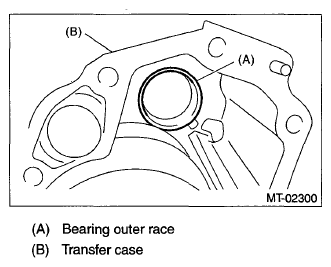

- Install the bearing outer race to transfer case.
Courtesy of SUBARU OF AMERICA, INC.

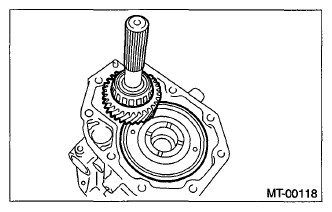

- Install the transfer driven gear.
Courtesy of SUBARU OF AMERICA, INC.
- Select a thrust washer. < Ref. to
INSTALLATION , Transfer Case and Extension Case Assembly. >
- Install the transfer case and the extension case assembly. < Ref. to
INSTALLATION , Transfer Case and Extension Case Assembly. >
- Install the back-up light switch and the neutral position switch. < Ref. to
INSTALLATION , Switches and Harness. >
- Install the manual transmission assembly to the vehicle. < Ref. to
INSTALLATION , Manual Transmission Assembly. >
