Transfer Driven Gear: Assembly

Using the ST, install the roller bearing (extension case side).
CAUTION: Do not apply a load in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton).

ST1 398177700 INSTALLER

ST2 899864100 REMOVER

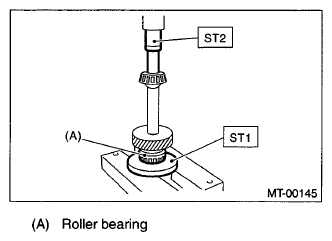

Fig 1: Installing Roller Bearing (Extension Case Side) Using ST
Courtesy of SUBARU OF AMERICA, INC.
Using ST, install the roller bearing (transfer case side).
CAUTION: Do not apply a load in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton).

ST 499757002 INSTALLER

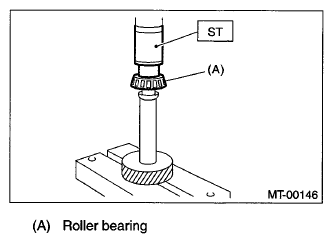

Fig 2: Installing Roller Bearing (Transfer Case Side) Using ST
Courtesy of SUBARU OF AMERICA, INC.
