Transfer Case

Remove the reverse check sleeve assembly. < Ref. to REMOVAL , Reverse Check Sleeve. >
Remove the oil guide.

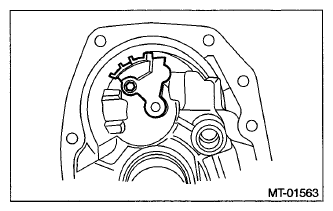

Fig 1: Oil Guide With Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil seal.
Set ST1, ST2 and transfer case to a press.
NOTE:
- Set the ST2 under ST1.
- Set the transfer case so that the hole for shifter arm is positioned vertically.
ST1 498267300 CYLINDER HEAD TABLE

ST2 498267200 CYLINDER HEAD TABLE

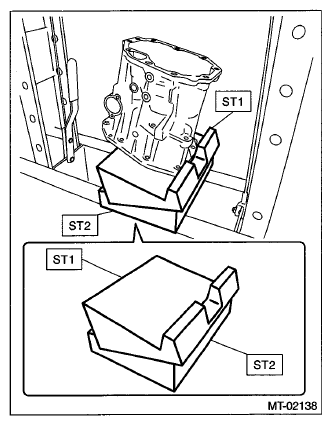

Fig 2: Installing ST1, ST2 And Transfer Case
Courtesy of SUBARU OF AMERICA, INC.
Using the round bar with diameter of 22 mm (0.87 in) or 23 mm (0.91 in), remove the roller bearing.

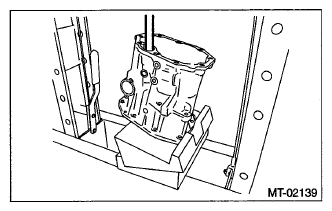

Fig 3: Removing Roller Bearing
Courtesy of SUBARU OF AMERICA, INC.
