Extension Case

  1. Remove the transfer drive gear assembly. < Ref. to REMOVAL , Transfer Drive Gear. >
  2. Remove the shift bracket.

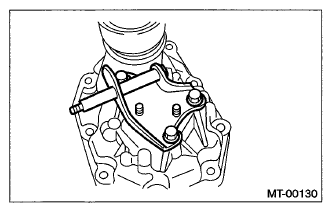

    Fig 1: Shift Bracket With Bolts And Nuts
    G07665984Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the oil seal from the extension case. < Ref. to OIL SEAL . >
