Extension Case

Using the ST, install the oil seal to the extension case. < Ref. to OIL SEAL . >
NOTE: Use a new oil seal.
Install the shift bracket to extension case.
Tightening torque:

24.5 N.m (2.5 kgf-m, 18.1 ft-lb)

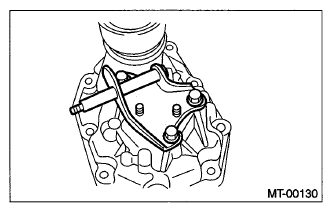

Fig 1: Shift Bracket With Bolts And Nuts
Courtesy of SUBARU OF AMERICA, INC.
Install the transfer drive gear to the extension case. < Ref. to INSTALLATION , Transfer Drive Gear. >
