Main Shaft Assembly for Single-Range: Installation

  1. Install the needle bearing and oil seal to the front of the transmission single-range main shaft assembly.
    NOTE:
    • Wrap the clutch splined section with vinyl tape to prevent damage to the oil seal.
    • Apply NICHIMOLY N-130 (or equivalent) to the sealing lip of the oil seal.
    • Use a new oil seal.
  2. Install the transmission case knock pin into the knock pin hole of the needle bearing outer race.
    NOTE: Align the end face of the seal with surface (A) when installing the oil seal.

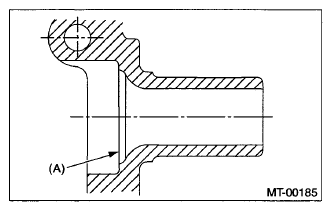

    Fig 1: Aligning End Face Of Seal
    G07666027Courtesy of SUBARU OF AMERICA, INC.
  3. Install the drive pinion shaft assembly. < Ref. to INSTALLATION , Drive Pinion Shaft Assembly. >
  4. Install the transmission case. < Ref. to INSTALLATION , Transmission Case. >
  5. Install the transfer case together with the extension case assembly. < Ref. to INSTALLATION , Transfer Case and Extension Case Assembly. >
  6. Install the manual transmission assembly to the vehicle. < Ref. to INSTALLATION , Manual Transmission Assembly. >
