Air Intake System

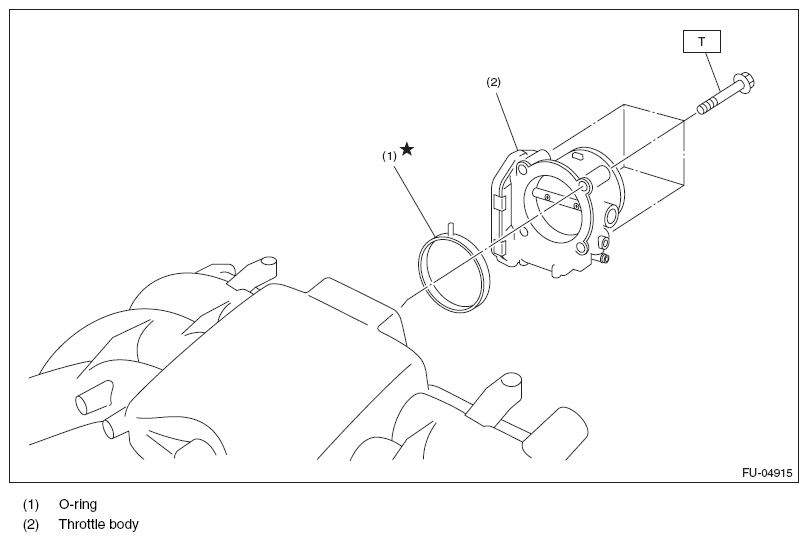

Fig 1: Identifying Air Intake System O-Ring And Throttle Body
G07924370Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 8 (0.8, 5.9)
