Torque Converter Clutch & Transmission Assembly

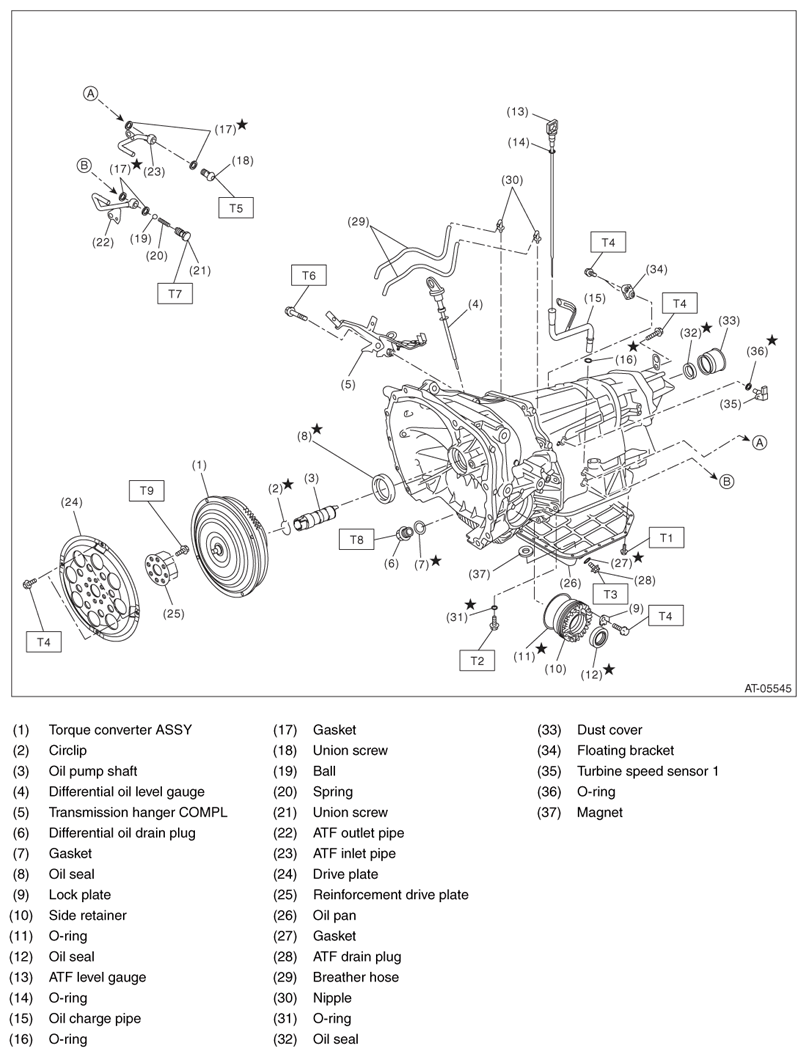

Fig 1: Exploded View Of Torque Converter Clutch And Transmission Assembly

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.5, 3.7)

T2: 13 (1.3, 9.6)

T3: 20 (2.0, 14.8)

T4: 25 (2.5, 18.4)

T5: 40 (4.1, 29.5)

T6: 41 (4.2, 30.2)

T7: 45 (4.6, 33.2)

T8: 70 (7.1, 51.6)

T9: 90 (9.2, 66.4)
