ATF Cooler Pipe and Hose: Installation

Install the ATF cooler pipe to frame.
CAUTION: Be careful not to bend the A/C pipe, when installing the ATF cooler pipe.

Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

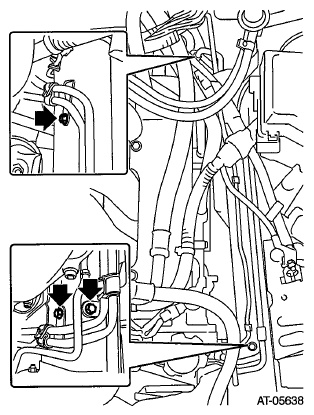

Fig 1: Locating ATF Cooler Pipe Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the A/C pipe to clip.
Install the engine coolant reservoir tank. Refer to RESERVOIR TANK .
Lift up the vehicle.
Lift up the vehicle.
Install the ATF cooler inlet and outlet pipes with new gaskets.
NOTE: Use a new bolt for the converter case joint.

Tightening torque:

T1: 38 N.m (3.9 kgf-m, 28.0 ft-lb)

T2: 40 N.m (4.1 kgf-m, 29.5 ft-lb)

T3: 45 N.m (4.6 kgf-m, 33.2 ft-lb)

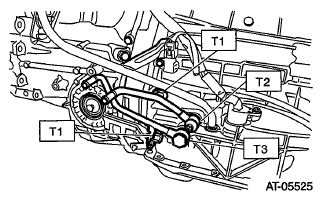

Fig 2: Locating Converter Case Joint Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the oil charge pipe. Refer to , INSTALLATION , Oil Charge Pipe.
Connect the ATF cooler hose to the ATF cooler pipe on the transmission side.
NOTE:
- Use a new ATF cooler hose.
- Install so that the ATF cooler hose is not folded over, excessively bent or twisted.
- Insert the ATF cooler hose to the specified position.

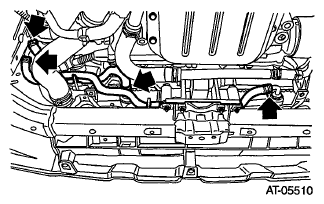

  Fig 3: Locating ATF Cooler Hoses And ATF Cooler Pipes
  Courtesy of SUBARU OF AMERICA, INC.
Connect the ATF cooler hose to the ATF cooler pipe on the radiator side.
NOTE:
- Use a new ATF cooler hose.
- Install so that the ATF cooler hose is not folded over, excessively bent or twisted.
- Insert the ATF cooler hose to the specified position.

  Fig 4: Locating ATF Cooler Hoses And ATF Cooler Pipes
  Courtesy of SUBARU OF AMERICA, INC.
Install the front exhaust pipe. Refer to FRONT EXHAUST PIPE .
Install the under cover. Refer to FRONT UNDER COVER .
Lower the vehicle.
Install the battery.
Check the ATF level. Refer to , INSPECTION , Automatic Transmission Fluid.
NOTE: Make sure there are no ATF leaks in joints between the transmission, radiator, ATF cooler pipes, and ATF cooler hoses.
Install the collector cover.
