Oil Pressure Switch

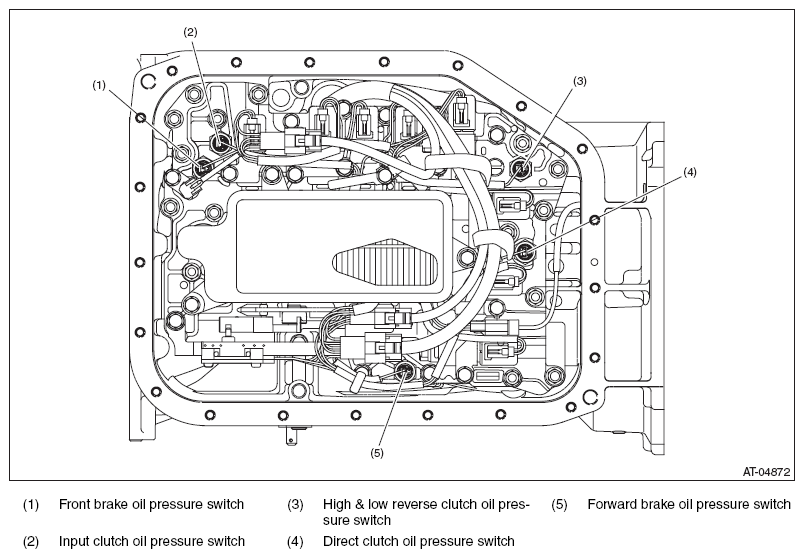

Fig 1: Identifying Oil Pressure Switch
G07913796Courtesy of SUBARU OF AMERICA, INC.
