Side Airbag Module

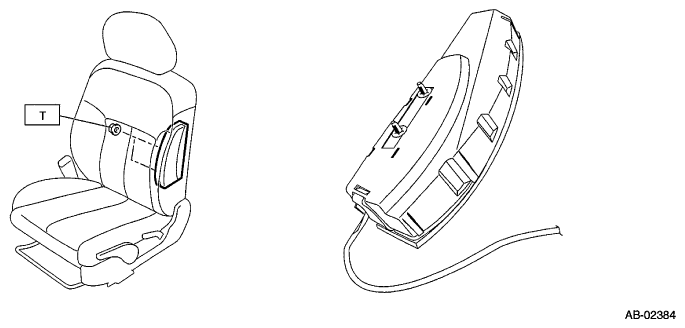

Fig 1: Identifying Side Airbag Module
G06653052Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

6 N.m (0.61 kgf-m, 4.4 ft-lb)
