Side Airbag Module

  1. How to disconnect:
    CAUTION: When pulling the slide lock or disconnecting connector, be sure to hold the connector, not the harness.
    1. Move the slide lock (A) in the direction of arrow and hold it.
    2. While holding the slide lock (A) in place, pull the connector (B) to the direction of arrow.

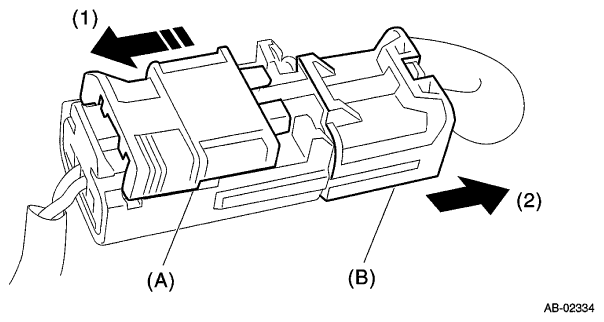

    Fig 1: Moving Slide Lock
    G06653090Courtesy of SUBARU OF AMERICA, INC.
  2. How to connect:
    CAUTION: Be sure to insert the connector in until it is locked. Then pull it gently to make sure that it is locked.

    Holding the connector, push it in securely until a clicking sound is heard.

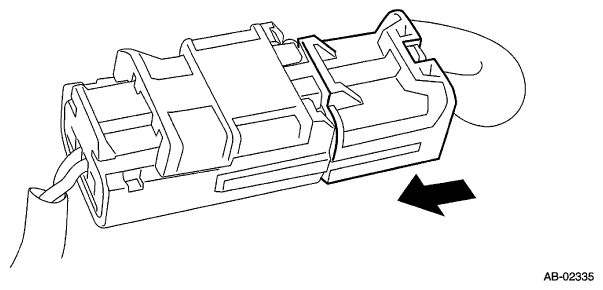

    Fig 2: Connecting Side Airbag Module Connector
    G06653091Courtesy of SUBARU OF AMERICA, INC.
