Reservoir Tank: Removal
WARNING: This page is about a different variant/trim than selected.

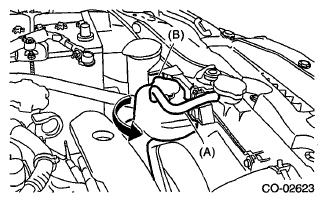

- Pull out the over flow hose (A) from the reservoir tank.
- Pull out the reservoir tank to the arrow direction while pushing the claw (B).
Courtesy of SUBARU OF AMERICA, INC.
