Radiator Sub Fan and Fan Motor: Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Confirm that the radiator hose is securely connected.

Install in the reverse order of removal.

Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

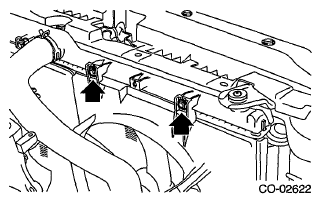

Fig 1: Locating Radiator Sub Fan Shroud Mounting Bolts (View 2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
