Mud Guard: Removal

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift up the vehicle.
  2. Remove the wheels.
  3. Remove the clips, and remove the mud guard.

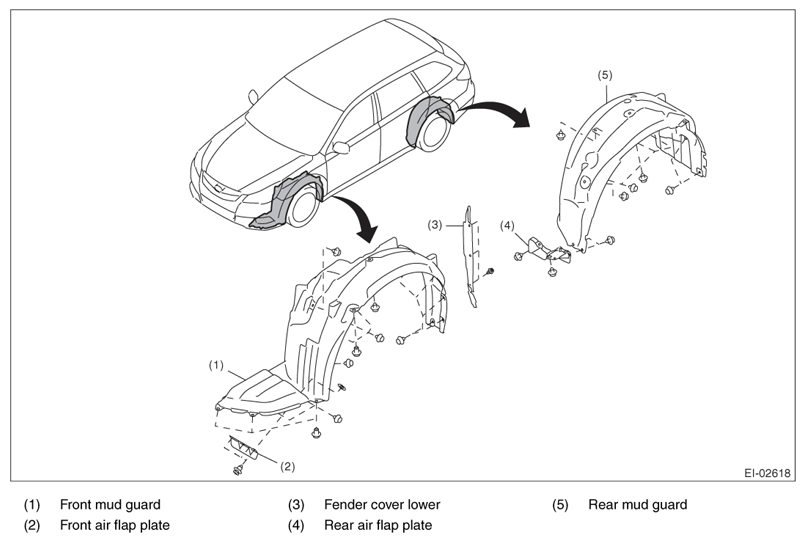

Fig 1: Identifying Mud Guard Components
G07916810Courtesy of SUBARU OF AMERICA, INC.
