WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
Sedan model

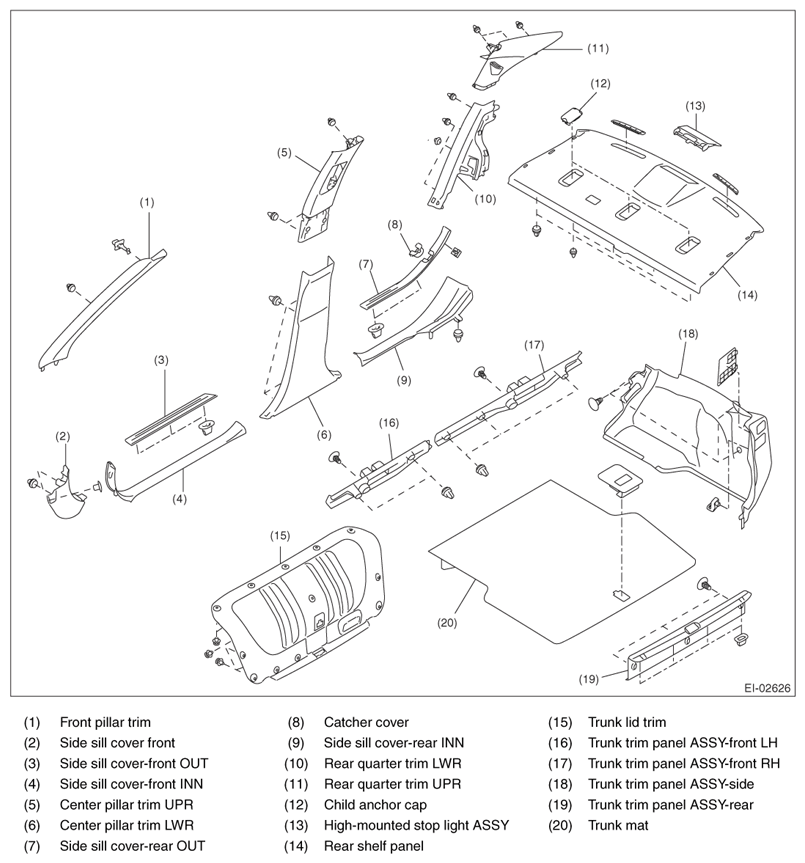

Fig 1: Exploded View Of Inner Trim (Sedan Model)
Courtesy of SUBARU OF AMERICA, INC.
OUTBACK model

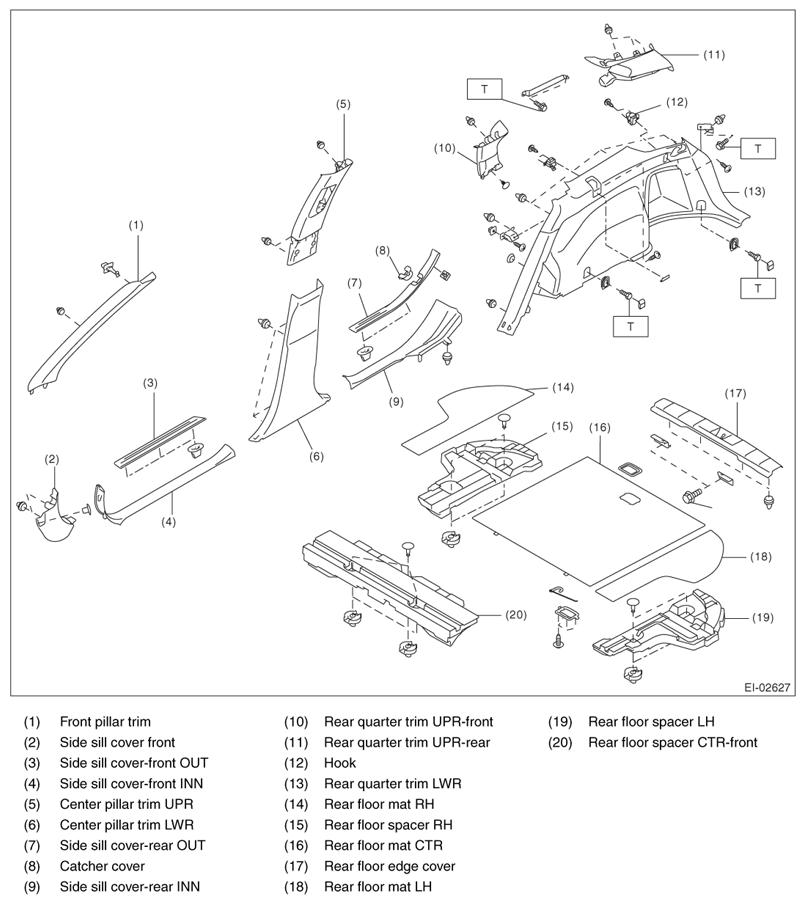

Fig 2: Exploded View Of Inner Trim (Outback Model)
