Floor Under Protector: Removal

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift up the vehicle.
    NOTE: A plate type lift cannot be used.
  2. Remove the bolts and clips, and remove the front under protector.

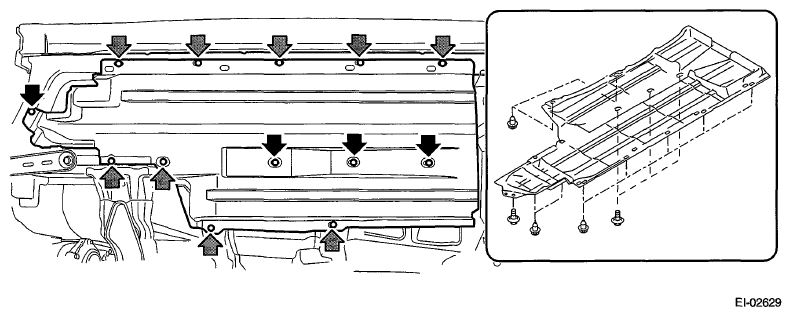

Fig 1: Locating Front Under Protector Bolts And Clips
G06653997Courtesy of SUBARU OF AMERICA, INC.
